MDL 1½” Mechanical Lock

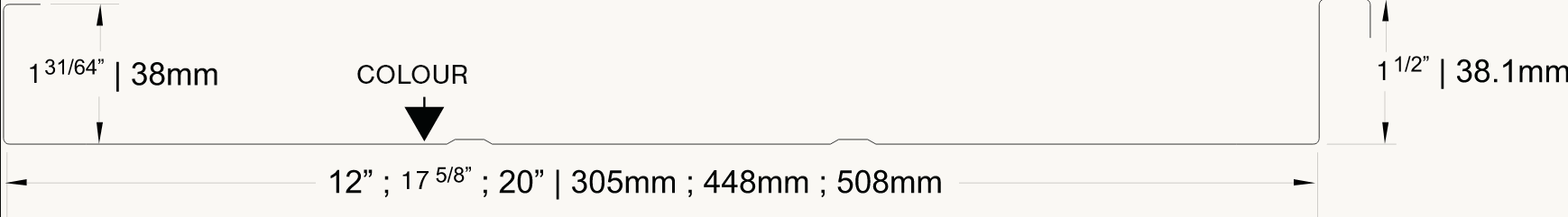

Coverage: 12″, 17 5/8″, 20″
Gauge: 22, 24
Material: Steel, Aluminum, Galvalume

The MDL 1½” Mechanical Lock is a standing seam panel that uses a mechanically seamed connection for the highest level of weather resistance and structural integrity. Ideal for low slope and demanding applications where a watertight seal is critical. No exposed fasteners, clean sightlines, and built to last in Manitoba’s harshest conditions.

Minimum Roof Slope: 1:12 — suitable for low to steep pitched roofs

Best fit: Low slope roofing, commercial buildings, architectural applications, high wind and snow load areas

Available Colors: All standard colors, see our Color Chart

Compatible Trims: All standard trims, see our Trims
