MDL 2″ Mechanical Lock

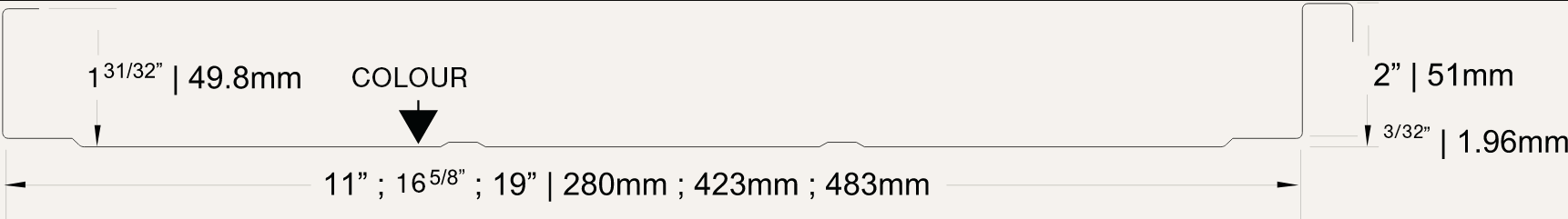

Coverage: 11″, 16 5/8″, 19″
Gauge: 22, 24
Material: Steel, Aluminum, Galvalume

The MDL 2″ Mechanical Lock offers all the benefits of a mechanically seamed standing seam panel with a taller 2″ seam height for even greater weather resistance and structural performance. The extra seam height makes it particularly well suited for low slope roofs and high exposure applications where water management is critical. No exposed fasteners and a clean, architectural finish.

Minimum Roof Slope: 1:12 — suitable for low to steep pitched roofs

Best fit: Low slope roofing, commercial buildings, high exposure applications, architectural projects

Available Colors: All standard colors, see our Color Chart

Compatible Trims: All standard trims, see our Trims
